Whitnall's Tubercle

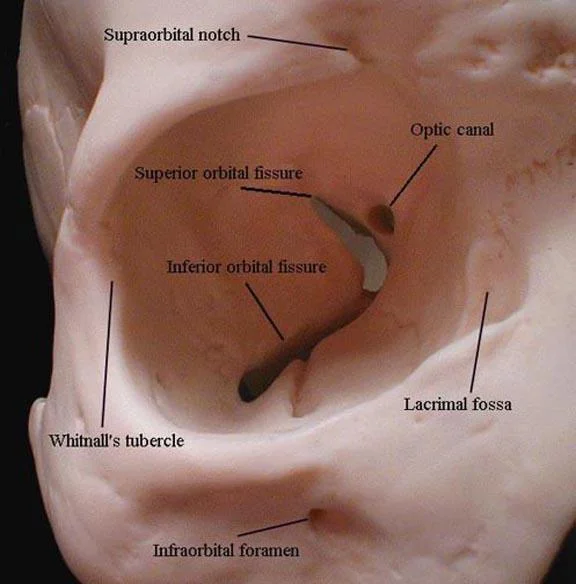

 Orbital bony structures without soft-tissue attachments.  Image from  Medscape .

Orbital bony structures without soft-tissue attachments.

Image from Medscape.

The lateral orbital tubercle, or Whitnall's tubercle, is found on the zygomatic bone.  According to the Basic and Clinical Science Course, it is typically around 11 mm inferior to the frontozygomatic suture (the junction between the frontal bone and zygomatic bone) (1), and sits 4-5 mm posterior to the lateral orbital rim around the midline (2).

Attachments

Because it serves as an anchor for many structures, it's important to not only know its location, but also everything that attaches to it.  Because they all contain the letter L, I remember these structures as the "4 L's":

  • Lateral rectus check ligament
  • Lockwood suspensory ligament
  • Lateral palpebral ligament
  • Levator aponeurosis

While I thought this up independently of any outside reference, I think this association is pretty obvious.  Since this mnemonic is already on the Internet, I want to make sure I give credit to Dvahal Patel as well (3).

Whitnall's Ligament:  Controversy?

Wait, does Whitnall's ligament attach to Whitnall's tubercle?  When I first was learning the material, it seemed pretty confusing.  The BCSC Section 2 text in Chapter 1 lists Whitnall's ligament as one of the structures that attaches to Whitnall's tubercle, but later on in that same chapter when it describes Whitnall's ligament, the tubercle is not mentioned at all as part of its lateral attachment (instead, the orbital lobe fascia of the lacrimal gland is listed) (1).  Several other texts specifically state that Whitnall's ligament does NOT have specific attachments to Whitnall's tubercle (4).  Whitnall's original text describing the tubercle doesn't list his eponymous ligament as one of the structures that attaches to it (5).  Of course, Wikipedia "definitively" agrees that Whitnall's ligament doesn't attach to Whitnall's tubercle, for what that's worth (6).

Bottom line:  Whitnall's ligament does NOT attach to Whitnall's tubercle.

Clinical Correlations

As you can probably guess, many of the anatomical things we have to memorize or learn will be applied in surgery.

  • Lateral tarsal strip:  In this treatment for lower lid laxity, the lateral tarsal strip is affixed to the periosteum of the lateral orbital wall.  Ideally, to preserve anatomical relationships, Whitnall's tubercle serves as the point of reattachment.  Other lateral canthal procedures also use this tubercle as a landmark (2).
